Stable Performance API Submersible Slurry Pump for Oil Drilling
Product Introduction

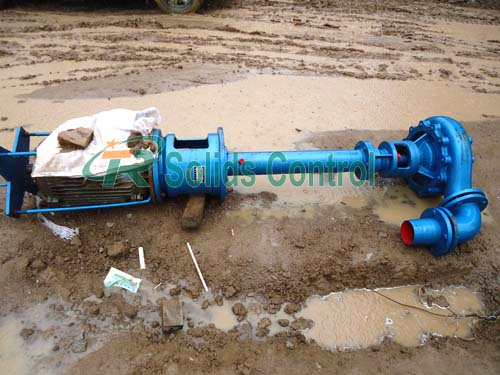

TR submersible slurry pump is a feeding pump designed and manufactured according to special requirements of installation.It is applicable to deliver corrosive drilling fluid (with suspended particulates) or other liquid media under similar work condition. It is mainly used in limited area and as feed pump of centrifuge. We have 11 models of 50YZ25-12 and 150YZ250-40B which are suitable for power grids of 50Hz and 60Hz.
The main features of our YZ submersible slurry pump are have enough rigidity in submerged parts of the shaft, and don’t set bearing and shaft seals between the impeller and pump, and could convey the medium containing solid particles with larger density. The transmission works by vertical motor mounted on the bearing base, connected by coupling and the pump.
Key Characterstics of TR Submersible Slurry Pump
- No bearing between impeller and pump for less repair cost.
- Compact design covers small space.
- Impeller is semi-open type.
- Enough rigidity in submerged parts of the shaft.
- Could convey the medium containing solid particles with larger density.
- Submerge length can be customizable.
- Vertical motor is installed on motor base, connecting the pump by coupling.
Technical Parameters of YZ Series Submersible Slurry Pump
| Model | Flow | Lift | Speed | Motor |
| 50YZ25-12 | 25m3/h | 12m | 1430r/min | 3kw |
| 50YZ20-18 | 20m3/h | 18m | 1430r/min | 4kw |
| 80YZ50-20B | 40m3/h | 16m | 1440r/min | 5.5kw |
| 80YZ50-20 | 60m3/h | 17.5m | 1440r/min | 7.5kw |
| 80YZ80-20 | 90m3/h | 22m | 1460r/min | 11kw |
| 100YZ100-30A | 75m3/h | 30m | 1470r/min | 18.5kw |
| 100YZ100-30 | 60m3/h | 36m | 1470r/min | 22kw |
| 100YZ160-38B | 82m3/h | 33m | 1480r/min | 30kw |
| 100YZ120-60 | 120m3/h | 40m | 1480r/min | 45kw |
| 150YZ250-40A | 135m3/h | 35m | 1480r/min | 55kw |
| 150YZ250-40B | 120m3/h | 28m | 1480r/min | 37kw |
Pump Features
No leakage: Used combined seal relying mainly on mechanical seal and packing subsidiary. The service life is 6 times as normal mechanical seal.
High efficiency: Impller and case have a streamlined design.
Long serivce life: The flow parts are made of high wearable cast iron.
No jam: The impeller has wide flow pass.
Small area: Vertical structure.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
